Webhook notifications

Blueshift can send a webhook notification each time a user interacts with a marketing email. The notifications sent are open, click, unsubscribe, bounce and delivered. You can use this to update analytics or route the data to other partners you may be using.

Webhook notifications are currently offered only on Email channel. We will be expanding to other channels in the near future.



We batch these notifications every 1 minute

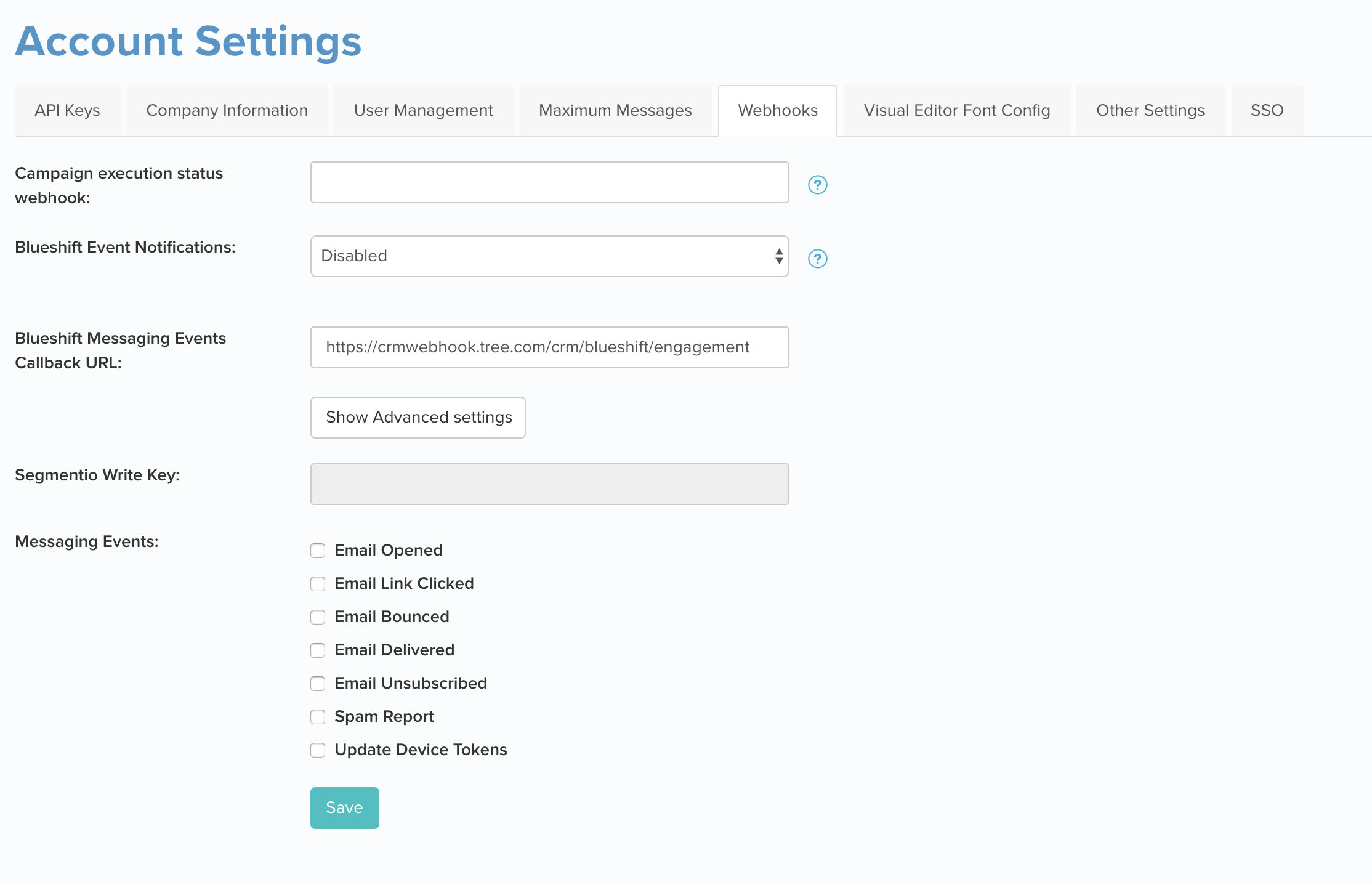

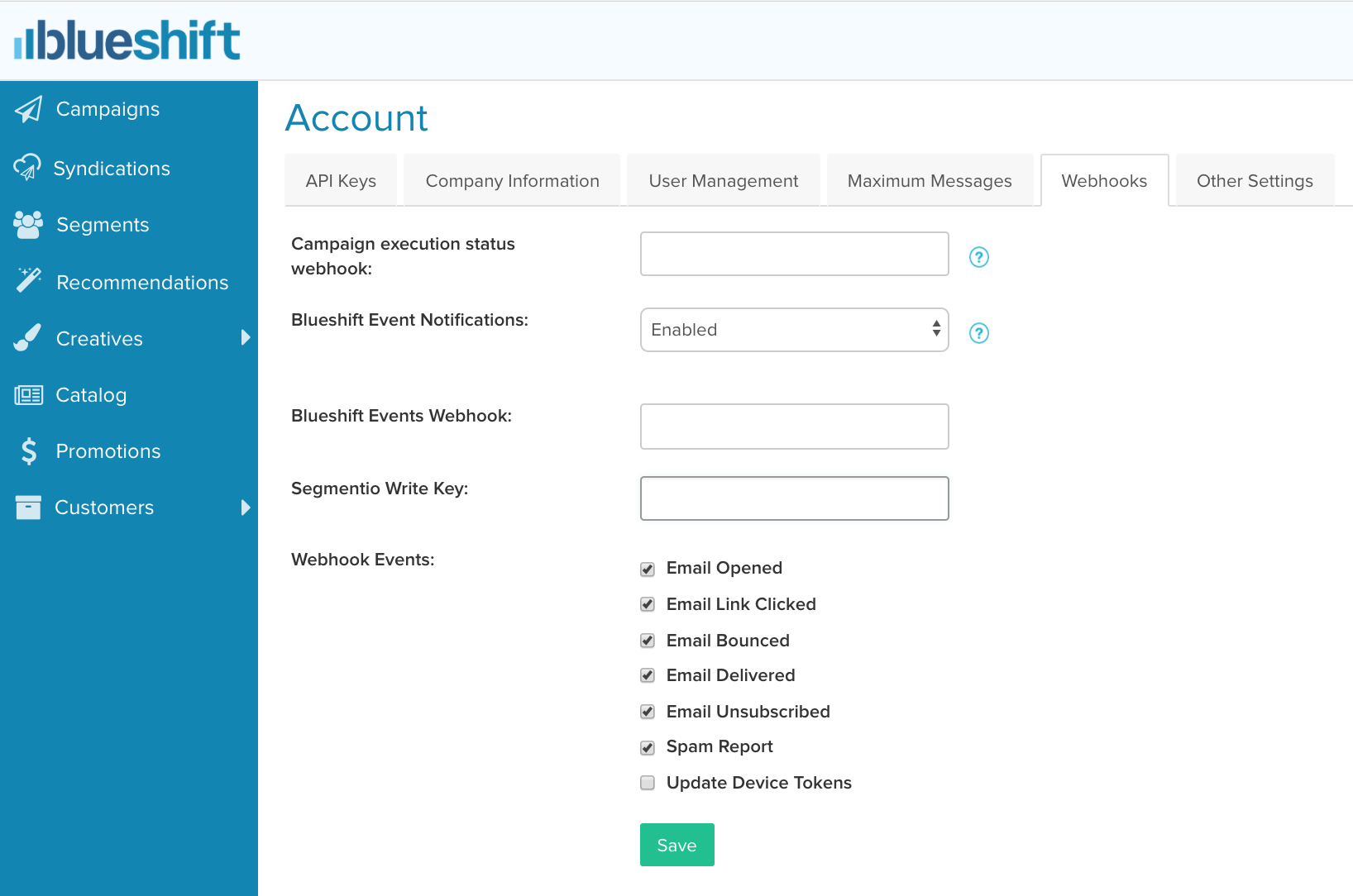

In order to setup webhook notifications go to the Webhooks tab in Account Settings. You'll need to configure:

  • Blueshift Events Webhook: A URL where webhook notifications should be sent
  • Webhook Events: Checkbox the list of event notifications to be sent

The webhook notification sends these attributes:

  • action: User's action including open/click/unsubscribed/delivered/spam
  • campaign_name: Campaign name in Blueshift
  • campaign_uuid: Campaign unique identifier
  • customer_id: Identifying information of user that did the action
  • email: Email address of user that did the action
  • IP: IP address of the user
  • trigger_timestamp: Timestamp in is08601 when user did the action
  • user_uuid: Unique UUID of the user in Blueshift
  • UTM*: Various UTM parameters corresponding to the campaign


Sample data format

The payload of the webhook callback is batched.

  • JSON
{
"batch": [
    {
    "action":"open",
    "bucket_uuid":"e211ea94-8da6-43a5-b95b-c21ccfe4568c",
    "campaign_exec_term":"on_going",
    "campaign_id":"0835fbbb-4059-4172-bebc-6aafdaa7b44f",
    "campaign_name":"Abandoned cart",
    "campaign_uuid":"0845bbbb-4059-4172-bebc-6aafdaa7b44f",
    "creative_uuid":"a533de05-1a32-4312-80da-7c5893fbd5a5",
    "customer_id":"12345",
    "email":"username@domain.com",
    "event":"open",
    "experiment_uuid":"ac09f565-9bd9-4f72-b5ea-6a143516f1f4",
    "ip":"198.234.218.145",
    "message_uuid":"3543b535-29ad-4144-a749-2340a5c694f0",
    "trigger_timestamp":"2016-11-22T06:50:14+00:00",
    "trigger_type":"EmailTrigger",
    "trigger_uuid":"577a52f6-0678-4aa2-80f9-f819395aba07",
    "user_agent":"Mozilla/5.0 (Macintosh; Intel Mac OS X 10.9; rv:49.0) Gecko/20100101 Firefox/49.0",
    "user_uuid":"9a4df219-e42c-4913-a3d9-917e9fb4dd6d",
    "utm_campaign":"abandoned_cart",
    "utm_content":"product-banner",
    "utm_medium":"email",
    "utm_source":"blueshift",
    "utm_term":null
    },
    ...
    ]
}

Blueshift can send a webhook notification for the users in a campaign across Email/Push/SMS channel, so that you can take care of actual delivery of message.

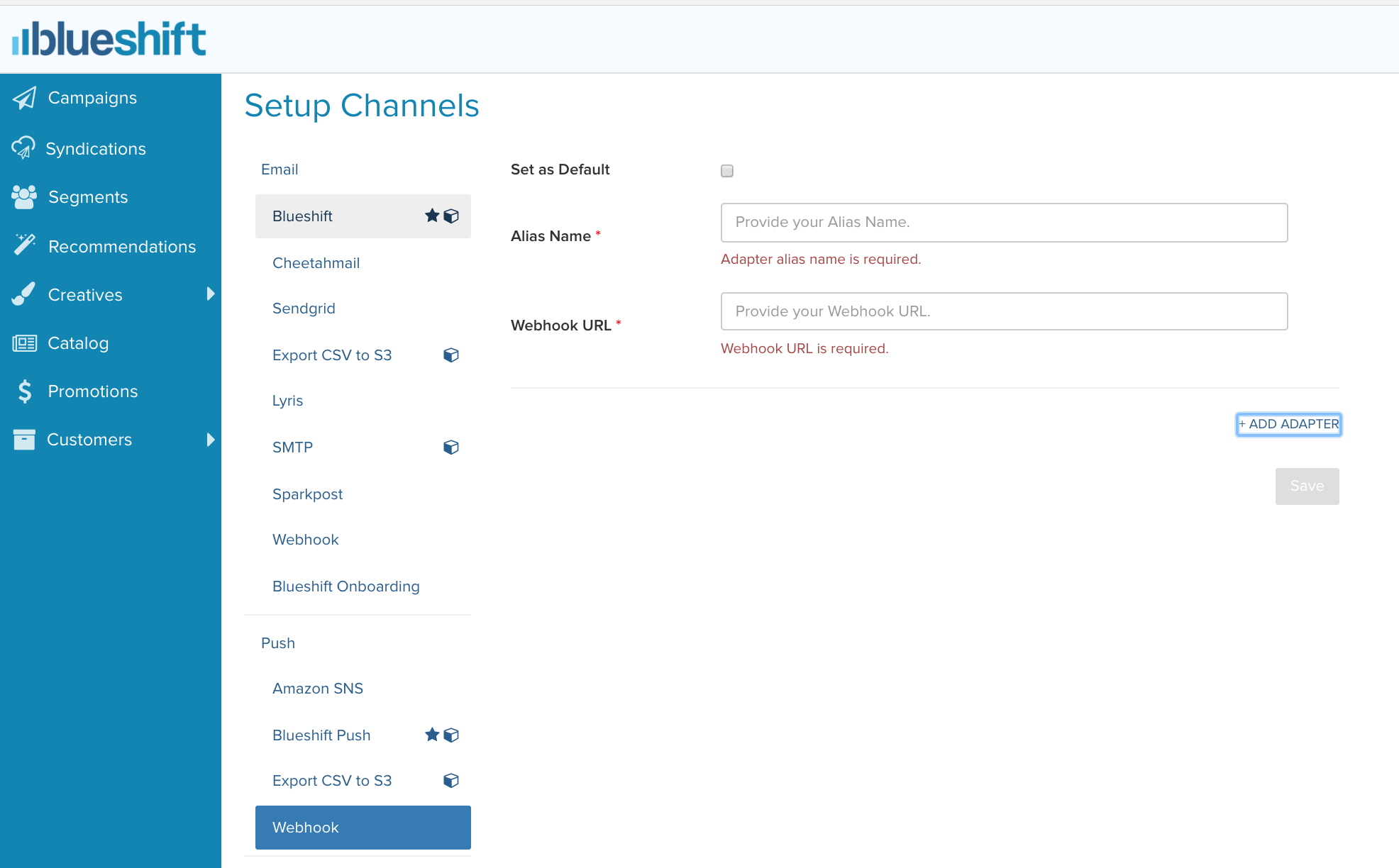

In order to setup webhook adapter, go to the Setup channels tab in Account Settings and select appropriate channel tab. You'll need to configure:

  • Webhook URL: A URL where webhook notifications should be sent

The webhook notification sends these attributes:

  • email: User's email id
  • subject: Subject line for email
  • content: HTML content for email
  • campaign_name: Campaign name in Blueshift
  • campaign_uuid: Campaign unique identifier
  • channel: Channel to identify (Email in this case)
  • customer_id: Identifying information of user that did the action
  • message_uuid: Message unique identifier in Blueshift
  • trigger_uuid: Trigger unique identifier in Blueshift
  • user_uuid: Unique UUID of the user in Blueshift
  • experiment_uuid: Unique UUID of the experiment in Blueshift


Sample data format (Email)

  • JSON
{
"email":"username@domain.com",
"subject":"Your subject line",
"content":"<!DOCTYPE html><html><meta http-equiv=\"Content-Type\" content=\"text/html; charset=utf-8\" /><meta name=\"viewport\" content=\"width=device-width\" /><style>#main{background:#fff;min-height:400px;padding:10px;font-family:arial,helvetica,sans-serif}</style><body><div id=\"main\"><p>Hello World</p></div><img src=\"http://0.0.0.0:3000/track?uid=39dac830-77ce-4988-b52a-9cd4e68b2320&amp;mid=8d23a9f8-5c6e-4683-ad8e-c4154fc8720b&amp;eid=0290f45a-8977-46c5-b556-509db7ae02ba&amp;a=open\" /></body></html>",
"campaign_name":"campaign_name",
"campaign_uuid":"3c52e072-67ca-4352-b825-9f52fae15789",
"channel":"email",
"customer_id":"123456",
"message_uuid":"8d23a9f8-5c6e-4683-ad8e-c4154fc8720b",
"trigger_uuid":"780fc20c-6ba0-4aae-81f8-4768531a16ea",
"user_uuid":"f0e8beb6-1927-11e7-93ae-92361f002671",
"experiment_uuid":"f8aa23ba-1927-11e7-93ae-92361f002671"
}

The webhook notification sends these attributes:

  • device_type: Device type (apple or android)
  • device_token: APNS or GCM token
  • payload: Content JSON
  • campaign_name: Campaign name in Blueshift
  • campaign_uuid: Campaign unique identifier
  • channel: Channel to identify (Email in this case)
  • customer_id: Identifying information of user that did the action
  • message_uuid: Message unique identifier in Blueshift
  • trigger_uuid: Trigger unique identifier in Blueshift
  • user_uuid: Unique UUID of the user in Blueshift
  • experiment_uuid: Unique UUID of the experiment in Blueshift


Sample data format (Push)

  • JSON
{
"device_type":"android",
"device_token":"ABCDEFGHYJKLMNOPQRSTUVWXYZ",
"payload":
  {
  "notification":
    {
    "title":"Hello World"
    }
  },
"campaign_name":"campaign_name",
"campaign_uuid":"3c52e072-67ca-4352-b825-9f52fae15789",
"channel":"email",
"customer_id":"123456",
"message_uuid":"8d23a9f8-5c6e-4683-ad8e-c4154fc8720b",
"trigger_uuid":"780fc20c-6ba0-4aae-81f8-4768531a16ea",
"user_uuid":"f0e8beb6-1927-11e7-93ae-92361f002671",
"experiment_uuid":"f8aa23ba-1927-11e7-93ae-92361f002671"
}

The webhook notification sends these attributes:

  • phone_number: User's phone number
  • message: Text message
  • campaign_name: Campaign name in Blueshift
  • campaign_uuid: Campaign unique identifier
  • channel: Channel to identify (Email in this case)
  • customer_id: Identifying information of user that did the action
  • message_uuid: Message unique identifier in Blueshift
  • trigger_uuid: Trigger unique identifier in Blueshift
  • user_uuid: Unique UUID of the user in Blueshift
  • experiment_uuid: Unique UUID of the experiment in Blueshift


Sample data format (SMS)

  • JSON
{
"phone_number":"919876543210",
"message":"Hello World!",
"campaign_name":"campaign_name",
"campaign_uuid":"3c52e072-67ca-4352-b825-9f52fae15789",
"channel":"email",
"customer_id":"123456",
"message_uuid":"8d23a9f8-5c6e-4683-ad8e-c4154fc8720b",
"trigger_uuid":"780fc20c-6ba0-4aae-81f8-4768531a16ea",
"user_uuid":"f0e8beb6-1927-11e7-93ae-92361f002671",
"experiment_uuid":"f8aa23ba-1927-11e7-93ae-92361f002671"
}

Contact support@getblueshift.com to enable device token updates in case you're using Blueshift's mobile SDK.

The webhook notification sends these attributes:

  • action: "update_device_tokens"
  • event: "update_device_tokens"
  • deleted_tokens: List of invalid device tokens which were deleted
  • updated_tokens: List of old and corresponding updated device token
  • user_uuid: Unique UUID of the user in Blueshift
  • customer_id: Identifying information of user that did the action
  • JSON
{
  "batch": [
    {
      "event":"update_device_tokens",
      "action":"update_device_tokens",
      "deleted_tokens":["APA91bEsiO41tsro2ixl6ii-Tk8lLRZmBDlQdtM7Zvz_TE1zQodobqfYDTZ2xKueuVZxFsg3fJCT0KH3UGvUb--2iHk6PxVqEn5hfHAAIzJMkRCVuPx_gX9IcvzDtyVA9yccXKIi0BZ2FFd2DPF_-Oe9LmGJ2MUzhA"],
      "updated_tokens":[],
      "user_uuid":"82bb3b68-8504-4ef4-86d0-f789422c2b59",
      "customer_id":"1348766"
    },
    {
      "event":"update_device_tokens",
      "action":"update_device_tokens",
      "deleted_tokens":[],
      "updated_tokens":[
        {
          "old":"APA91bEsiO41tsro2ixl6ii-Tk8lLRZmBDlQdtM7Zvz_TE1zQodobqfYDTZ2xKueuVZxFsg3fJCT0KH3UGvUb--2iHk6PxVqEn5hfHAAIzJMkRCVuPx_gX9IcvzDtyVA9yccXKIi0BZ2FFd2DPF_-Oe9LmGJ2MUzhA",
          "new":"AODKEqdejd@ro2ixl6ii-Tk8lLRZmBDlQdtM7Zvz_TE1zQodobqfYDTZ2xKueuVZxFsg3fJCT0KH3UGvUb--2iHk6PxVqEn5hfHAAIzJMkRCVuPx_gX9IcvzDtyVA9yccXKIi0BZ2FFd2DPF_-Oe9LmGJ2MUzhA"
        }
      ],
      "user_uuid":"82bb3b68-8504-4ef4-86d0-f789422c2b59",
      "customer_id":"284922"
    }
  ]
}
