Reference segments are segments that you use in other segments. You can define a basic criteria in a segment and then reuse that criteria in other segments. In this way, you can share logic between segments and avoid repetition when creating queries. It also provides a way to manage complexity by providing a way to break down query logic into smaller, more digestible and semantic units.

The referencing is dynamic and hence when a segment is updated, all segments that reference it are updated instantly.

Reference segments can be used in both Basic and Advanced segments.

For example, you can create a segment for users in the loyalty program and then use it in a segment for loyalty program users residing in a particular area.

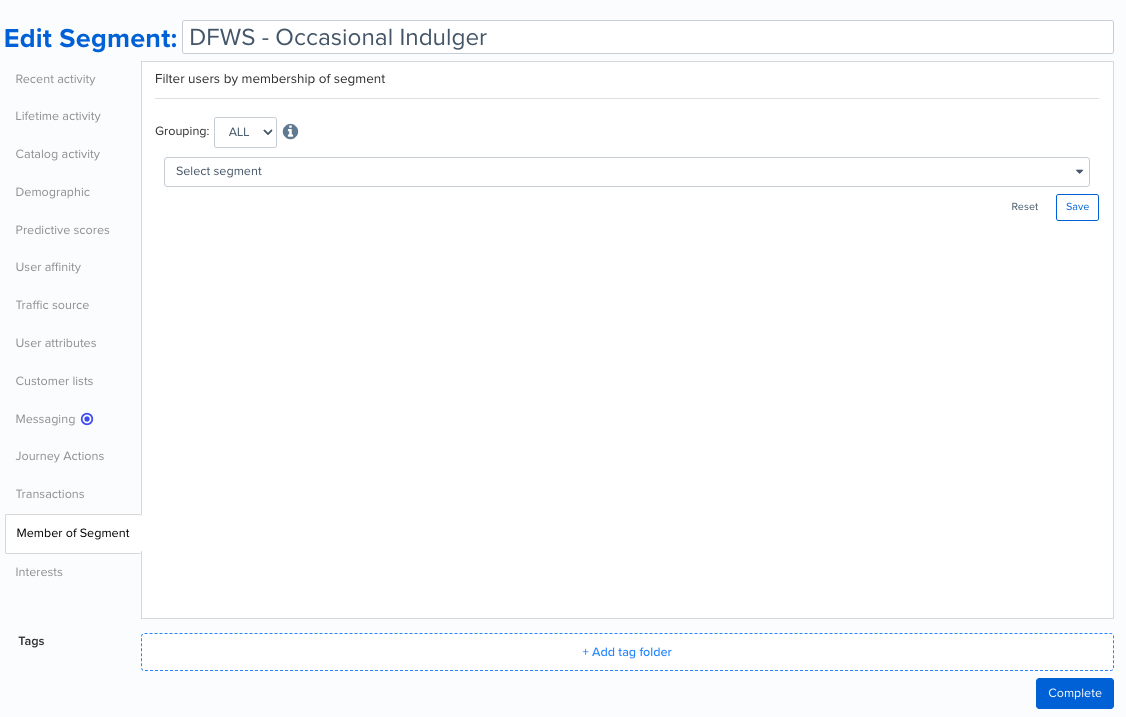

Reference Segments in Basic Segments

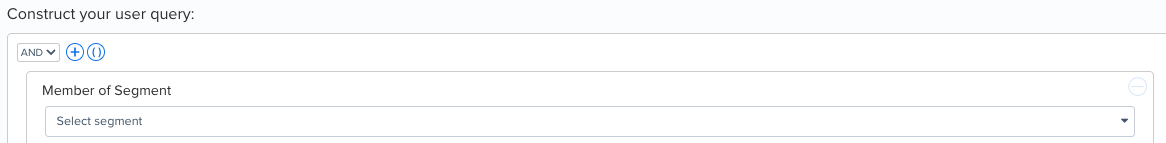

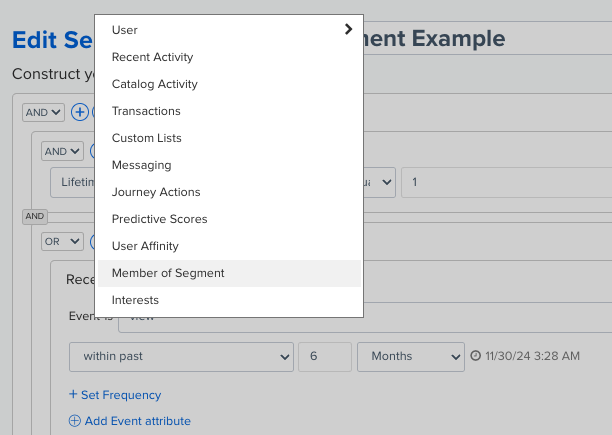

Reference Segments in Advanced Segments





Nesting of reference segments

When a segment is updated, all segments that reference it are updated instantly. If there are nested segments, the computations are even more complicated. To keep computations efficient, nesting upto only 3 levels breadth and 3 levels depth is accepted.

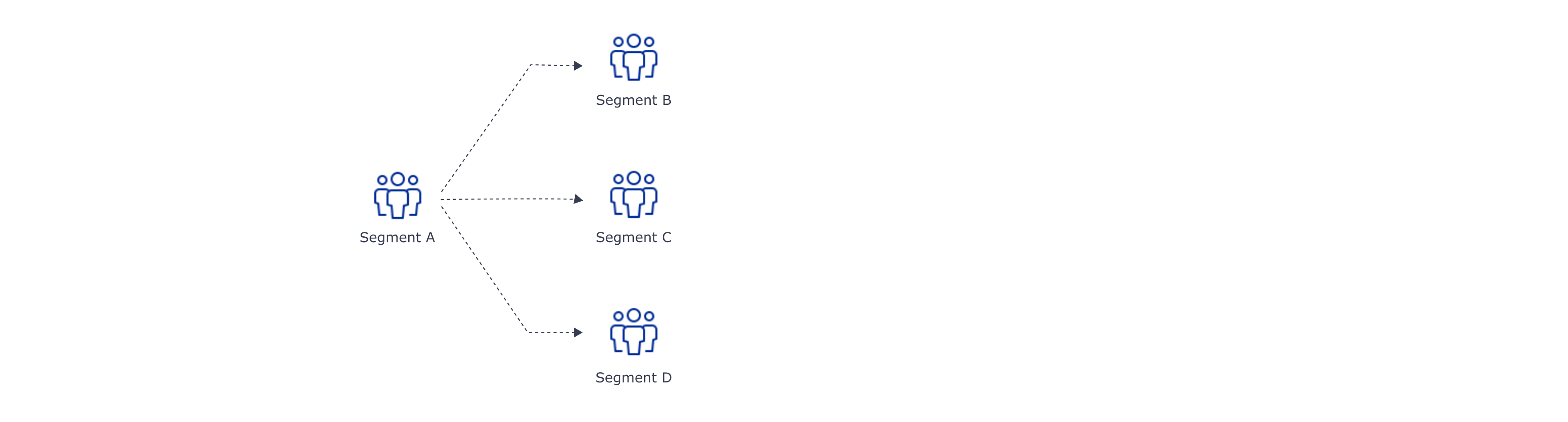

Breadth of 3 means that a segment cannot have more than 3 reference segments in the segment criteria. For example, If segment A has segments B, C, and D in its criteria, then it has a breadth of 3.

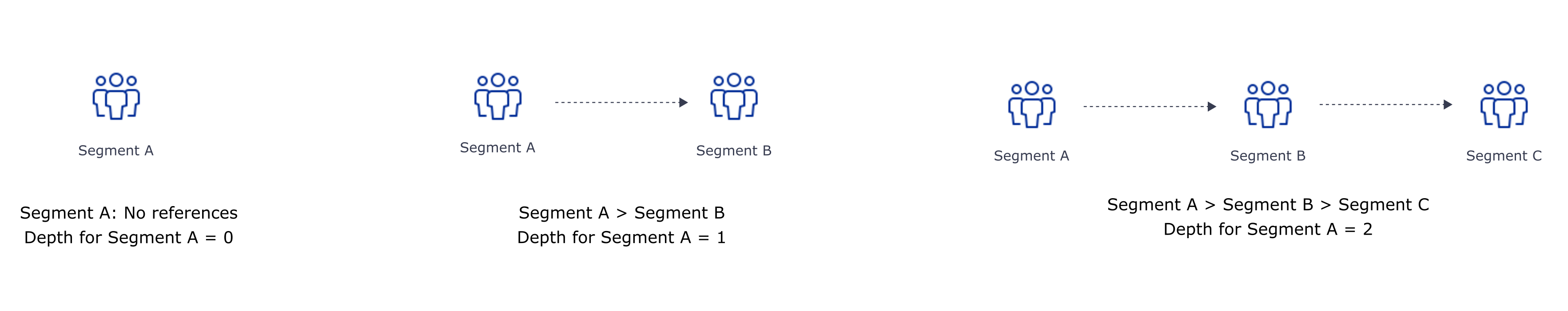

Depth of 3 means that a segment cannot have more than 3 reference segments in the criteria, even if it is not directly referencing these segments. Consider the following examples.
